Features

1/4" SONY IT Super-HAD CCD Digital Signal Process,470TVL
Delicate and Elegant Appearance
1.0 Lux/F1.6 in Normal Mode,0.02Lux/F1.6 in Lowlight Mode
Built-in 22× optic Lens f=3.9-85.8mm,11× digital Zoom optional
AWB, ES,Iris Control
Menu function
White balance,shutter speed selectable
OSD
Excellent picture quality

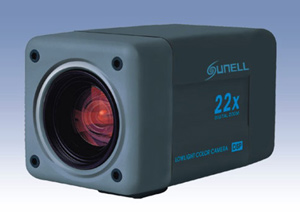

Model

SN-600H-22/10

SN-600H-22/20

Signal system

PAL System

NTSC System

Image sensor

1/4" IT Super-HAD Color CCD(SONY)

Active pixel

752(H)x582(V)(PAL)

768(H)x494(V)(NTSC)

Scanning Frequency(H/V)

15.625KHZ/50HZ

15.625KHZ/60HZ

Chip Size

4.47mm(H)X3.80mm(V)

Unit Cell Size

4.85m(H)X4.65m(V)

Signl format

625 lines 2:1 interlace

Horizontal Resolution

470 TVLines

Min scene illimination

0.1Lux/0.02Lux:Low Shutter ON(F1.6/30IRE)

S/N ratio

52dB(AGC OFF)

Exposure control

Auto,Manual,IRIS PRI, Shutter PRI,AGC on/off

Function

Digital zoom,Positive/Negative,B/W,Mirror,PIP,Freeze,BLC,Title,Camera ID Display ,Preset,DNR,WDR,DIS Low-Shutter

Line phase

Adjustable(0°-359°)

Line/Lock input

Positive3.5Vp-p,50Hz±1Hz

Focus length

3.9mm to 85.8mm

OSD menu

YES

Zoom Ratio

DigitalX11 OpticalX22

Sync system

50Hz,Linelock(option)

Tolerance

0%-96%

Minimum object distance

(X1-X4)10cm,(X5-X22)1m

Video output

1.0 Vp-p,75 Ohm

Iris

F1.6-F32

Operating temperature

-10℃ to+50℃

Power Requirement

12V DC±10%(4.3W)

Serial communication

Yes(RS-232/485)

Dimension

60(W)×115(D)×67(H)mm

Weight

240g approximately
